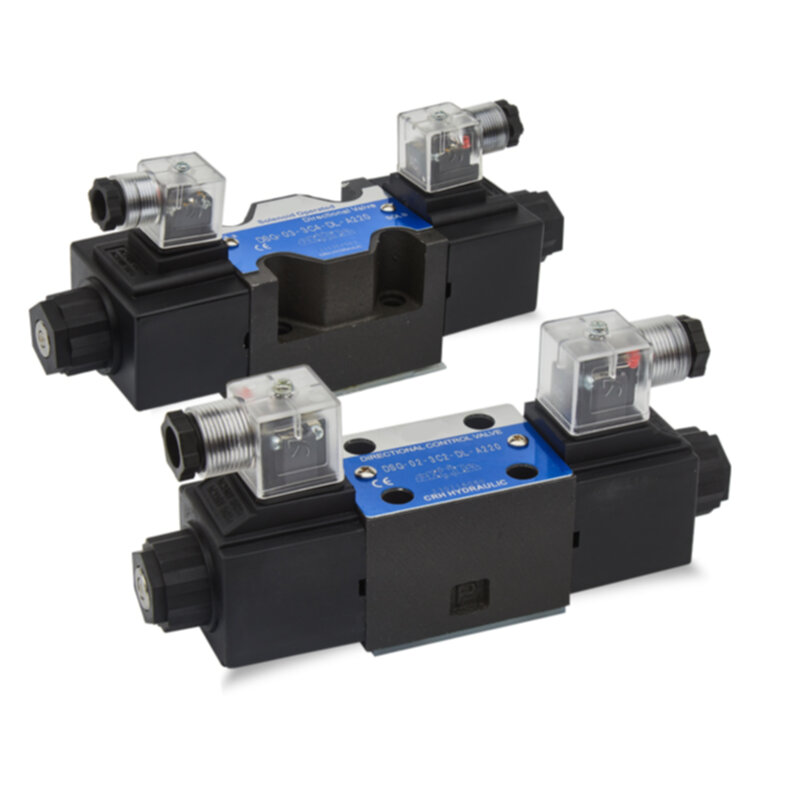

DSG-01 Series Solenoid Valves (Yuken Interchangeable)
$12 - $35 / piece
- 100% dimensional and performance interchangeable with Yuken DSG-01 series valves
- Service life: 5 million+ cycles under normal operating conditions
- Multiple voltage options: DC24V, AC110V, AC220V
- Excellent sealing performance, zero internal leakage
- Fast response time: <100ms
- All standard models in stock, shipped within 24 hours
- 1 year warranty, lifetime technical support
General Specifications
| Model Series | DSG-01 (Yuken type) |
|---|---|
| Pressure Rating | 31.5 MPa (4500 PSI) |
| Flow Rate | 63 L/min (16.6 GPM) |
| Operating Temperature | -10°C ~ +70°C (14°F ~ 158°F) |
| Fluid Compatibility | Mineral hydraulic oil, synthetic hydraulic oil (HLP, HLPD) |
| Fluid Viscosity | 10 ~ 400 mm²/s (cSt) |
| Filtration Requirement | NAS 8 class or better (ISO 4406 18/15) |
| Mounting Pattern | ISO 4401-03-02-0-05, 100% compatible with Yuken DSG-01 |
| Coil Protection Class | IP65 (DIN 40050) |
| Coil Connection | DIN 43650A, PG9 cable entry |
Model Selection Guide
| Model | Spool Type | Voltage | Flow Rate (L/min) | Pressure (MPa) | Price (USD) |
|---|---|---|---|---|---|
| DSG-01-2B2-D24-N1-50 | 2B2 (Spring return) | DC24V | 63 | 31.5 | $18.50 |
| DSG-01-2B3B-D24-N1-50 | 2B3B (Spring return) | DC24V | 63 | 31.5 | $19.00 |
| DSG-01-3C2-D24-N1-50 | 3C2 (Closed center) | DC24V | 63 | 31.5 | $21.50 |
| DSG-01-3C4-D24-N1-50 | 3C4 (Tandem center) | DC24V | 63 | 31.5 | $22.00 |
| DSG-01-3C6-D24-N1-50 | 3C6 (Open center) | DC24V | 63 | 31.5 | $22.50 |
| DSG-01-2B2-A220-N1-50 | 2B2 (Spring return) | AC220V | 63 | 31.5 | $17.50 |
| DSG-01-3C2-A220-N1-50 | 3C2 (Closed center) | AC220V | 63 | 31.5 | $20.50 |
| DSG-01-2B2-A110-N1-50 | 2B2 (Spring return) | AC110V | 63 | 31.5 | $17.80 |
Core Features & Advantages
100% Interchangeable
Perfect dimensional and performance match with Yuken original valves, direct replacement without any modification
Fast Response
Response time <100ms, suitable for high-frequency operation applications
Zero Leakage
High-quality imported seals, excellent sealing performance, no internal or external leakage
Long Service Life
5 million+ cycles service life under normal operating conditions
Wide Temperature Range
Stable operation from -10°C to +70°C, suitable for various working environments
Multiple Voltage Options
DC24V, AC110V, AC220V available, meet different control system requirements
Typical Applications
🏭 Injection Molding Machines
Clamping, injection, ejection control
🗜️ Hydraulic Presses
Pressing, forming, stamping processes
🏗️ Construction Machinery
Excavators, loaders, cranes
🤖 Automation Equipment
Assembly lines, packaging machines
🪚 Machine Tools
CNC machines, grinding machines, lathes
🚜 Agricultural Machinery
Tractors, harvesters, irrigation systems
Ordering Information
- MOQ: 1 piece for standard models, 100 pieces for custom models
- Delivery Time: Standard models shipped within 24 hours, custom orders delivered in 3-7 days
- Packaging: Neutral packaging or branded packaging as requested
- Payment Terms: T/T, Western Union, PayPal, L/C
- Warranty: 1 year warranty against manufacturing defects
- Customization: Special voltages, spool types, and connections available upon request
